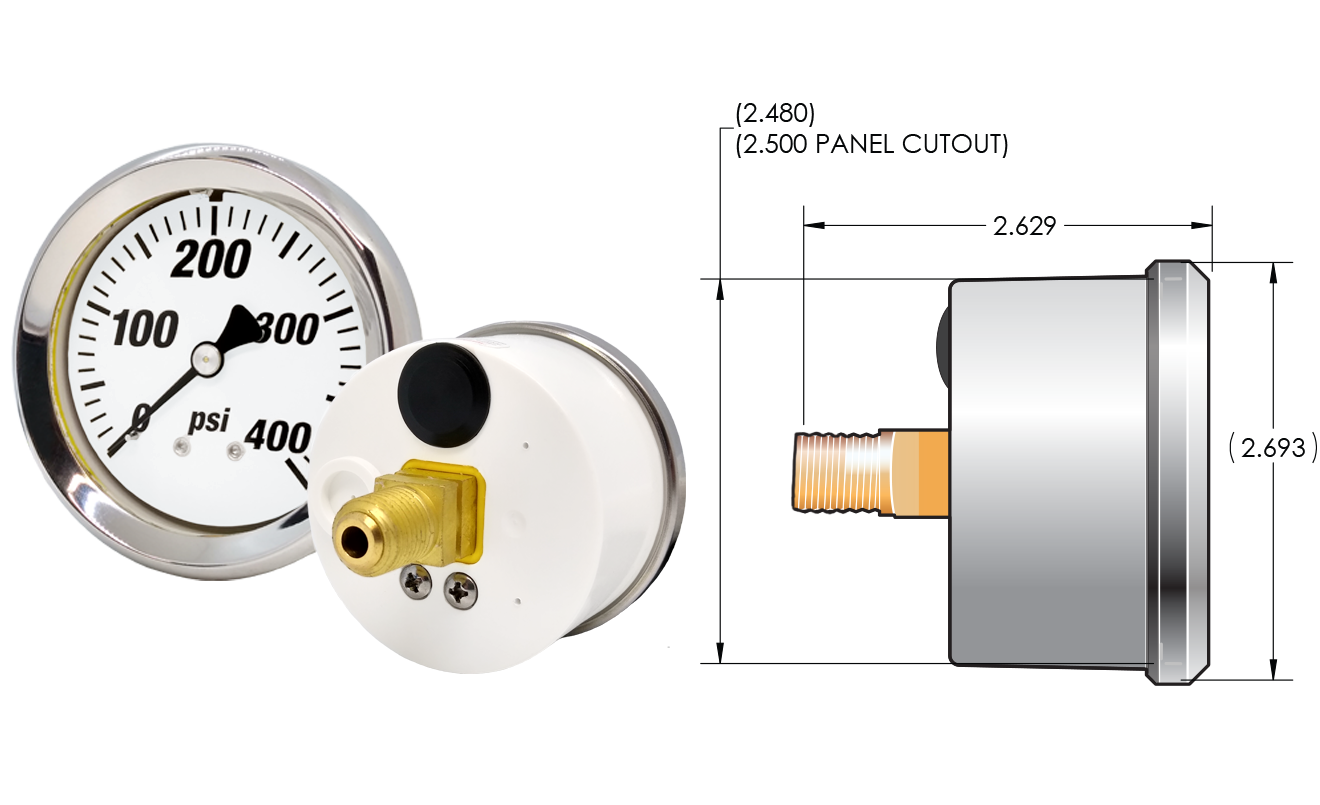

63mm (2.5") TC Gauge

Request Quote ➟

product

Overview

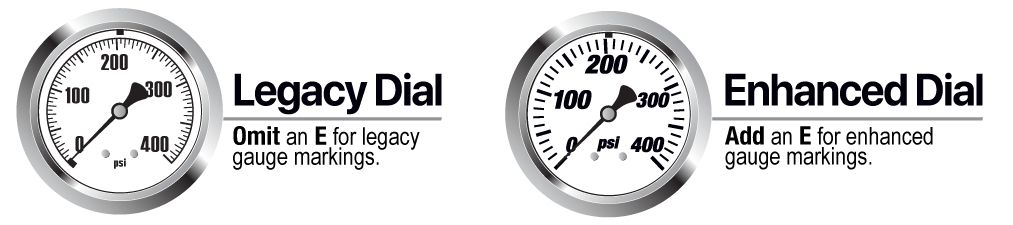

3010339-XXXXXE-OTP

Add "OTP" for Orange Tip Pointer:pdf
gauge

The Innovative Controls TC Pressure Gauges have been designed to solve all of the most common problems related to fire apparatus applications. These include high temperature gauge fill expansion, low temperature gauge freeze-up, and accuracy issues related to use in extreme enviroments. These gauges feature an over-sized internal breathing diaphragm inside the case that compensates for liquid fill expansion caused by high temperatures - preventing plug failure and preserving gauge accuracy.

Part Numbers

3010339-20000 63mm (Nominal 2.5") Nylon Case Gauge, White Background (0-400 psi)
3010339-20001 63mm (Nominal 2.5") Nylon Case Gauge, White Background (-30-400 psi)
3010339-20002 63mm (Nominal 2.5") Nylon Case Gauge, White Background (0-600 psi)
3010339-20003 63mm (Nominal 2.5") Nylon Case Gauge, White Background (-30-600 psi)
3010339-20005 63mm (Nominal 2.5") Nylon Case Gauge, Black Background (0-400 psi)
3010339-20006 63mm (Nominal 2.5") Nylon Case Gauge, Black Background (-30-400 psi)
3010339-20007 63mm (Nominal 2.5") Nylon Case Gauge, Black Background (0-600 psi)
3010339-20008 63mm (Nominal 2.5") Nylon Case Gauge, Black Background (-30-0-600 psi)
3010339-20014-OTP 63mm (Nominal 2.5") Nylon Case Gauge (0-400 psi/kpa)
3010339-20015-OTP 63mm (Nominal 2.5") Nylon Case Gauge (-30-400 psi/kpa)
3010339-20016-OTP 63mm (Nominal 2.5") Nylon Case Gauge (0-600 psi/kpa)
3010339-20017-OTP 63mm (Nominal 2.5") Nylon Case Gauge (-30-600 psi/kpa)

PDFs:

pdf

TC Gauge Spec Sheet
