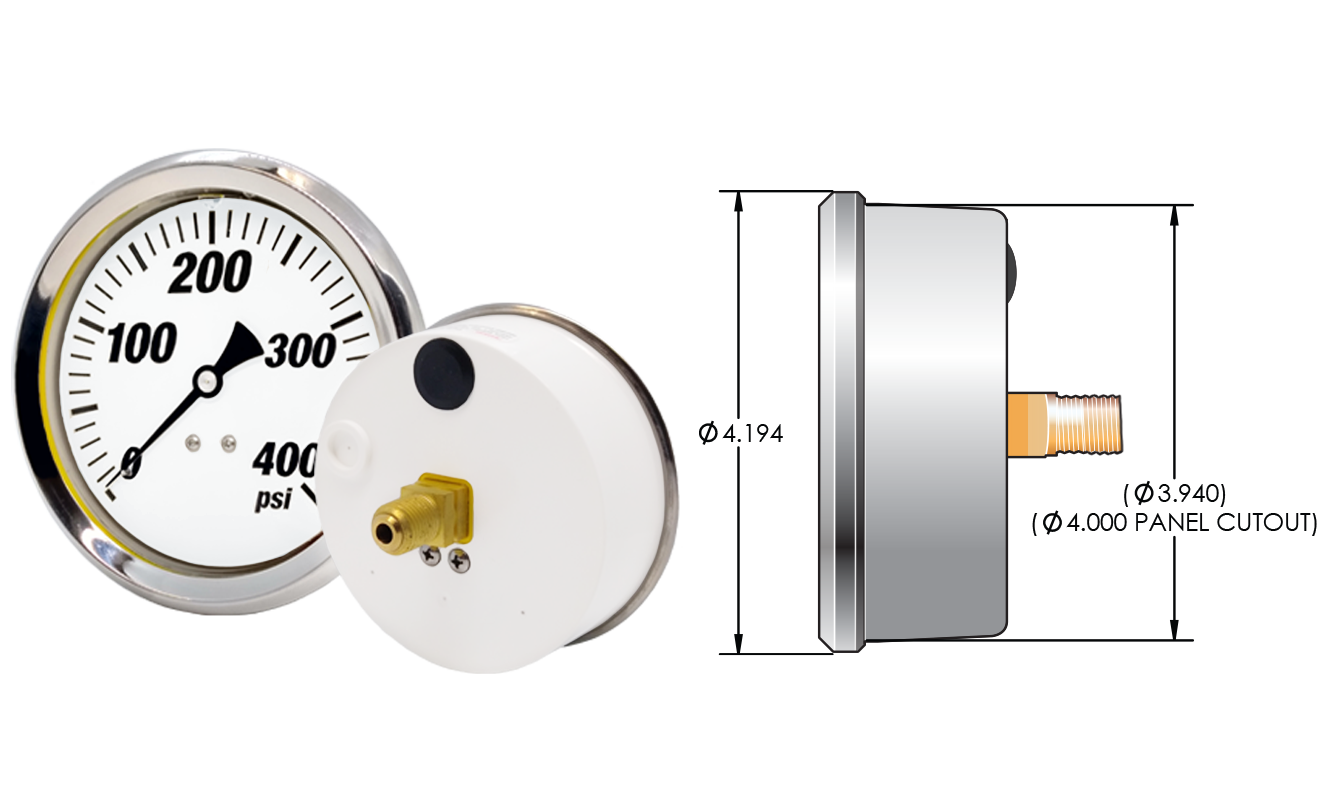

100mm (4.0") TC Gauge

Request Quote ➟

Overview

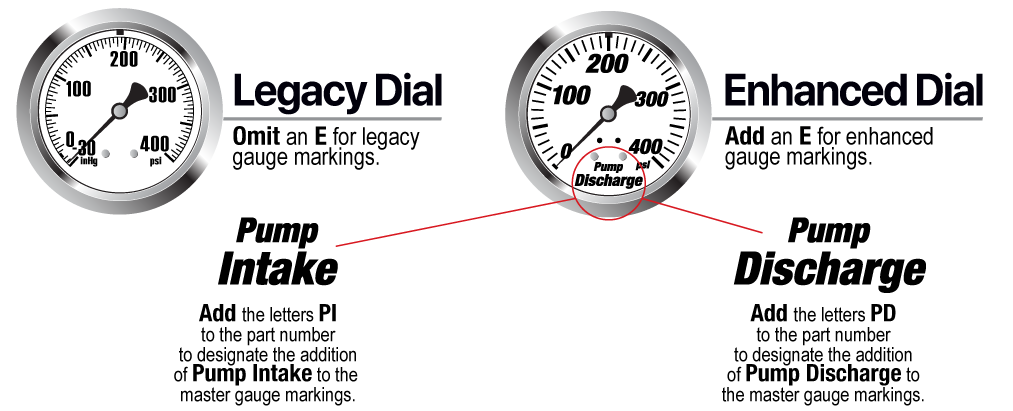

3010340-XXXXXE-XX-OTP

Add "OTP" for Orange Tip Pointer:
XX = Add "PI" for Pump Intake OR Add "PD" for Pump Discharge

The Innovative Controls TC Pressure Gauges have been designed to solve all of the most common problems related to fire apparatus applications. These include high temperature gauge fill expansion, low temperature gauge freeze-up, and accuracy issues related to use in extreme enviroments. These gauges feature an over-sized internal breathing diaphragm inside the case that compensates for liquid fill expansion caused by high temperatures - preventing plug failure and preserving gauge accuracy.

Product Feedback >>>

Part Numbers

3010340-40000	100mm (Nominal 4.0") Nylon Case Gauge, White Background (0-400 psi)
3010340-40001	100mm (Nominal 4.0") Nylon Case Gauge, White Background (-30-400 psi)
3010340-40002	100mm (Nominal 4.0") Nylon Case Gauge, White Background (0-600 psi)
3010340-40003	100mm (Nominal 4.0") Nylon Case Gauge, White Background (-30-600 psi)
3010340-40005	100mm (Nominal 4.0") Nylon Case Gauge, Black Background (0-400 psi)
3010340-40006	100mm (Nominal 4.0") Nylon Case Gauge, Black Background (-30-400 psi)
3010340-40007	100mm (Nominal 4.0") Nylon Case Gauge, Black Background (0-600 psi)
3010340-40008	100mm (Nominal 4.0") Nylon Case Gauge, Black Background (-30-600 psi)
3010340-40014-OTP	100mm (Nominal 4.0") Nylon Case Gauge (0-400 psi/kpa)
3010340-40015-OTP	100mm (Nominal 4.0") Nylon Case Gauge (-30-400 psi/kpa)
3010340-40016-OTP	100mm (Nominal 4.0") Nylon Case Gauge (0-600 psi/kpa)
3010340-40017-OTP	100mm (Nominal 4.0") Nylon Case Gauge (-30-600 psi/kpa)
