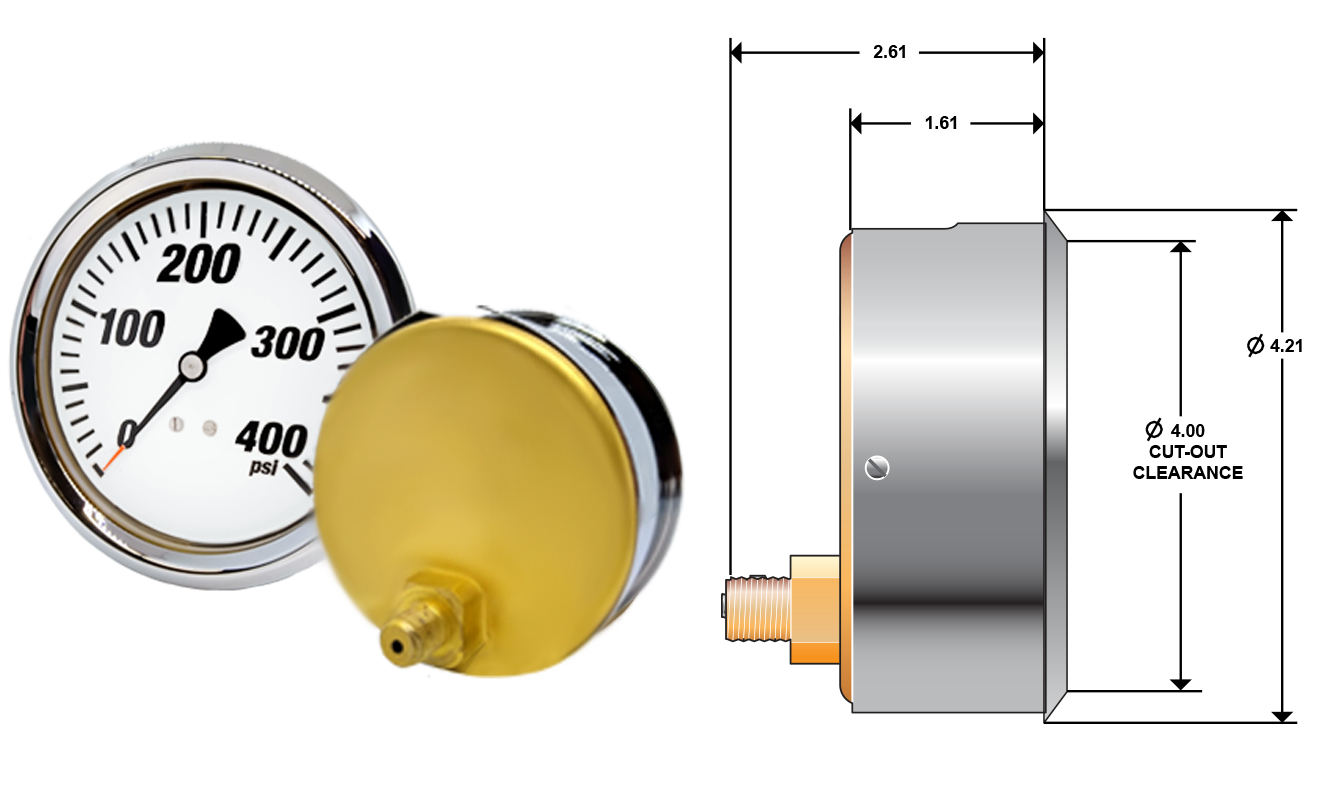

100mm (Nominal 4.0") Brass Case Gauge

product

Request More Information >>>

Overview

3010113-XXXXXE-XX-OTP

Add "OTP" for Orange Tip Pointer:pdf
XX = Add "PI" for Pump Intake OR Add "PD" for Pump Discharge
gauge

The Innovative Controls brass case gauge has been a robust solution in the fire industry for decades. The heavy wall bourdon tube and hand-polished brass and nickel silver movements are sized proportionally to each gauge insuring accuracy and minimal wear for the extended life of the gauge. Zero-leak one piece brass casting integrates the case, stem, connection, and movements into a complete unit.

Part Numbers

3010113-40100 4.0" Dia. Brass Case Gauge, White Background (0-400 psi)
3010113-40101 4.0" Dia. Brass Case Gauge, White Background (-30-400 psi)
3010113-40102 4.0" Dia. Brass Case Gauge, White Background (0-600 psi)
3010113-40103 4.0" Dia. Brass Case Gauge, White Background (-30-600 psi)
3010113-40105 4.0" Dia. Brass Case Gauge, Black Background (0-400 psi)
3010113-40406 4.0" Dia. Brass Case Gauge, Black Background (-30-400 psi)
3010113-40107 4.0" Dia. Brass Case Gauge, Black Background (0-600 psi)
3010113-40108 4.0" Dia. Brass Case Gauge, Black Background (-30-600 psi)
3010113-40114-OTP 4.0" Dia. Brass Case Gauge (0-400 psi/kpa)
3010113-40115-OTP 4.0" Dia. Brass Case Gauge (-30-400 psi/kpa)
3010113-40116-OTP 4.0" Dia. Brass Case Gauge (0-600 psi/kpa)
3010113-40117-OTP 4.0" Dia. Brass Case Gauge (-30-600 psi/kpa)

*3010113-XXXXXE - Add "E" for Enhanced text displayed above

**3010113-XXXXX - Add "OTP" for Orange Tip Pointer
